FTC134

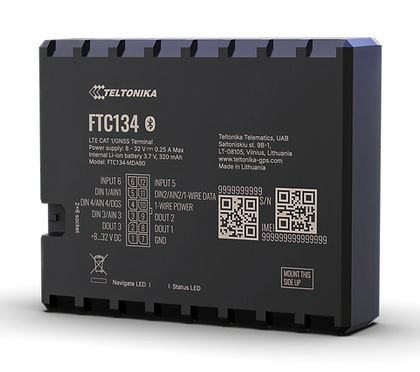

Teltonika FTC134 — Next-Generation 4G LTE GPS Tracker with BLE 5.4 and Flexible I/O

The Teltonika FTC134 is Teltonika's most advanced compact GPS tracker — a next-generation 4G LTE Cat 1 device built for vehicles, trailers and industrial assets that demand the highest levels of tracking accuracy, connectivity and sensor flexibility. With sub-1.5 metre GNSS accuracy, Bluetooth LE 5.4, fully software-defined flexible I/Os and integrated CAN bus support, the FTC134 represents a significant leap forward from previous generation trackers like the FMC130 — combining more capability, better accuracy and greater flexibility in a single compact unit.

As an official Teltonika distributor in the UK, Tracking Hardware UK ships the FTC134 directly from our London warehouse — with trade pricing available for telematics service providers, fleet operators and resellers.

Key Features

• 4G LTE Cat 1 connectivity — faster data speeds, lower latency and more reliable connectivity than 2G trackers, future-proof for UK network deployments Sub-1.5 metre

• GNSS accuracy — multi-constellation GNSS with GPS, GLONASS, Galileo and BeiDou delivers significantly improved positioning accuracy compared to previous generation devices

• Bluetooth LE 5.4 — the latest generation Bluetooth, supporting connection to BLE sensors, beacons and wireless accessories with improved range and reliability over previous BLE versions

• Software-defined flexible I/Os — inputs are fully configurable in software as digital, analogue, negative or 1-Wire, giving installers maximum flexibility across different vehicle types and sensor requirements without hardware changes

• 1-Wire interface — connects temperature sensors for cold chain monitoring, iButton for driver identification and other 1-Wire accessories

• CAN bus support — compatible with Teltonika CAN adapters for reading real vehicle data including fuel level, odometer, engine RPM and more from a wide range of vehicles

• Smart ignition detection — automatically detects ignition on and off by monitoring external voltage patterns rather than relying on a manually configured threshold, simplifying installation

• Remote immobiliser — digital output allows remote vehicle disabling via your fleet management platform

• Crash detection — built-in accelerometer detects and records impact events with detailed crash data packets

• Tow detection — triggers an alert if the vehicle is moved without ignition

• Jamming detection — alerts when GPS signal interference is detected

• Eco-driving monitoring — tracks harsh braking, acceleration and cornering for driver behaviour scoring and coaching

• Private and business mode — drivers can switch between private and business trip recording, keeping personal journeys off the fleet platform

• Multiple sleep modes — configurable deep sleep and power-off modes to minimise battery drain when the vehicle is stationary for extended periods

• Internal backup battery — maintains device operation if vehicle power is interrupted

• Over-the-air updates — firmware and configuration updatable remotely via FOTA Web and TCT

•


Driver Identification with Tracking Hardware UK 1-Wire Keypad

The FTC134 supports 1-Wire driver identification via its flexible 1-Wire interface — and is fully compatible with the Tracking Hardware UK 1-Wire driver identification keypad. Drivers enter their unique PIN on the keypad at the start of each trip, and the driver ID is immediately logged alongside all GPS, I/O and telematics data. This gives fleet managers complete visibility of who was driving each vehicle at any given time — with no Bluetooth pairing required and no complex installation. Contact us to discuss keypad and FTC134 bundle pricing.

Technical Specifications

Cellular: 4G LTE Cat 1 with 2G fallback

GNSS: GPS, GLONASS, Galileo, BeiDou — sub-1.5m accuracy

Bluetooth: BLE 5.4

Flexible I/O: Digital, analogue, negative, 1-Wire — software configurable

CAN bus: Supported via Teltonika CAN adapters

Power input: 10V – 30V DC

Internal battery: Backup battery included

Memory: Internal flash storage with buffer records

Operating temperature: -40°C to +85°C

OTA updates: FOTA Web and TCT

Typical Use Cases

Ideal for light vehicle and commercial fleet management requiring next-generation 4G tracking accuracy, logistics and delivery services needing reliable live tracking and driver accountability, refrigerated transport requiring 1-Wire temperature monitoring, construction and agriculture machinery with CAN data requirements, insurance telematics programmes needing accurate driving behaviour data, car rental and leasing companies deploying at scale, and any application where flexible sensor connectivity across a mixed fleet is essential.

Frequently Asked Questions

What makes the FTC134 different from the FMC130?

The FTC134 is Teltonika's next-generation replacement for the FMC130 family. Key improvements include BLE 5.4 versus BLE 4.0, sub-1.5 metre GNSS accuracy versus standard accuracy, fully software-defined flexible I/Os that eliminate the need for hardware variants, and smart ignition detection that simplifies installation. For new fleet deployments the FTC134 is the recommended choice.

What does software-defined flexible I/O mean?

Instead of fixed hardware inputs that are locked to one function, the FTC134's inputs can be configured in software as digital, analogue, negative or 1-Wire depending on the sensor or accessory you need to connect. This means a single device variant works across a much wider range of vehicles and applications without the need to stock multiple hardware configurations.

Is the FTC134 compatible with the Tracking Hardware UK 1-Wire driver identification keypad?

Yes — the FTC134 supports 1-Wire connectivity and is fully compatible with the Tracking Hardware UK 1-Wire driver identification keypad. Drivers enter their PIN at the start of each trip and the driver ID is logged alongside all telematics data. Contact us for keypad and FTC134 bundle pricing.

#

What fleet management platforms is the FTC134 compatible with?

The FTC134 is compatible with all major telematics platforms that support Teltonika devices, including Wialon, Navixy, Traccar and many others. Contact us to confirm compatibility with your specific platform before ordering.

Can I buy the FTC134 in bulk from Tracking Hardware UK?

Yes — we supply telematics service providers, fleet operators and resellers across the UK and internationally. Volume pricing and trade accounts are available. Contact us for a bulk quote.
