Queclink GV57MG
Queclink GV57MG: compact LTE Cat M1/NB2 tracker for motorcycles and light vehicles. IP67 · BLE 5.1 · 8–32 V DC · 190 mAh backup battery.

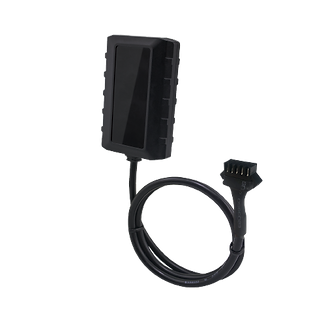

Queclink GV57MG — Compact Waterproof Tracker for Motorcycles and Light Vehicles
The Queclink GV57MG is a compact GNSS tracker with LTE Cat M1/NB2 connectivity, 2G fallback, IP67 protection and Bluetooth Low Energy 5.1. It is designed for motorcycle monitoring, stolen vehicle recovery and basic vehicle tracking.
Tracking Hardware UK supplies GV57MG for B2B projects. We can help check the hardware version, destination network, receiving platform, installation requirements and current availability before you order.
Key Specifications and Deployment Notes
Connectivity: LTE Cat M1/NB2 with 2G fallback. Check supported bands and operator services for the destination; fallback requires an available 2G network.
Protection: IP67 enclosure for installations exposed to dust and water, fitted according to the installation instructions.
Bluetooth: BLE 5.1. Accessory compatibility depends on the exact device, firmware and configuration.
Power: 8–32 V DC external supply with a 190 mAh Li-Polymer backup battery.
Size and weight: 84 × 50 × 16.6 mm; 74 g, as listed in the linked Queclink datasheet.
Installation: Five-pin in-line connector with digital I/O for applications such as ignition detection and vehicle control.
Monitoring: Scheduled reporting, geofences, tow alerts, external-power monitoring, driving-behaviour monitoring and up to 10,000 buffered messages.
Power-saving behaviour: Queclink lists a zero-power-consumption feature. Confirm the required mode and configuration; it should not be read as a promise of continuous tracking with no energy use.
Choosing the Right Setup
Confirm cellular coverage, SIM/APN settings, server and port, reporting frequency and platform support before a pilot deployment. Check the current hardware revision, certifications and installation guidance for the destination country.
For driver identification, send us the proposed tracker and keypad model. Bluetooth support alone does not establish compatibility.
Frequently Asked Questions
What is Queclink GV57MG used for?
GV57MG is designed for motorcycle monitoring, stolen vehicle recovery and basic tracking of light vehicles. The installation and reporting setup should match the vehicle and operating conditions.
Does GV57MG work with any SIM or tracking platform?
Check that the SIM plan, network technology, supported bands and APN match the deployment. The platform must support the GV57MG protocol and the features you need. 2G fallback depends on local network availability.
Can I use a BLE driver identification keypad?
The exact tracker, keypad, firmware and configuration must be checked together. BLE 5.1 support alone does not confirm compatibility. Contact us before ordering a bundle.
How does GV57MG compare with GV57MG Plus?
GV57MG has a 190 mAh backup battery. The GV57MG Plus is an alternative to discuss when extended backup operation is important. Confirm the required reporting pattern and current model specifications before choosing.
Can I request a bulk quote and international delivery?
Yes. Send Tracking Hardware UK your quantity, destination and configuration requirements. We will confirm current stock, lead time, delivery costs and support arrangements in your quote.
What are the size and weight of the GV57MG?
The GV57MG measures 84 x 50 x 16.6 mm and weighs 74 g, as listed in the Queclink datasheet.
Product Documentation
Download the Queclink GV57MG datasheet (PDF)
Specifications above follow the linked manufacturer datasheet. Confirm the current revision and regional requirements before deployment.
